ChinaCNCzone Hot Sale SL-1040 100W CO2 Desktop Laser Engraving Machine

ChinaCNCzone Hot Sale SL-1040 100W CO2 Desktop Laser Engraving Machine From professional China CO2 Laser Engraving machine supplier. Machine service life: 7200H at least for laser tube, 5-8 years for machine body..

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
sales02atscotlecom

ChinaCNCzone SL-1040 100W CO2 Desktop Laser Engraving Machine

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
   18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier install, Safer transport.
  40W  exhaust fan, flow can be  5.27m³\Min.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System with a chiller.
    With jam-proof heat exchanger, water flow detection alarm, over temperature alarm.
9. Laser position.
10. Emergency Stop Buttom.
11. Larger Size, 400*1000mm working area.
12. Lifting platform is electric control, 0-25cm.
13. Drag - and - chain transmission line
14. Laser focal length: 5CM
15. A limit switch let it can only work when the cover is closed.
16. Machine service life: 7200H at least for laser tube, 5-8 years for machine body..
17. From professional China CO2 Laser Engraving machine supplier.



key board


CO2 Laser engraving machine factory




ChinaCNCzone Culture

ChinaCNCzone Team

CO2 Laser engraving machine checking

ChinaCNCzone Certificate

XB-1040 100W CO2 Laser Engraving Cutting Machine
     Total power<300W
Laser power100W
Laser typeCO2 laser engraving machine
Power      supplyAC 220V/110V
Working      area400*1000 mm
Engraving      depth0-10 mm (different material      differ)
Cutting      depth0-10 mm
Engraving      speed0-600mm/s
Cutting      speed0-600mm/s
Lifting      platform0-250 mm  Honeycomb      Worktable
Locating      precision<0.01 mm
Min shaping      characterCharacter: 2*2mm, Letter:      1*1mm
Working      temperature5℃-45℃
Working      humidity5%-95%
Resolution      ratio≤1000dpi
Data      transfer interfaceUSB 2.0 (offline)
System      environmentWindows XP / Win 7 / Win 8
Cooling Water Cooling and protection      system with chiller
Graphic Format SupportedThe Files which CorelDraw      & WinsealXP can identify
(BMP,JPEG,PLT,CDR,AI,)      TIFF,PCX,DIB,TIF
Compatible      softwareCorelDraw,WinsealXP
Color      separationNO
Sloping      engravingNO
ProtectionEmergency stop buttom and Stop      working when water broken
Machine      Dimensions140*75*58 cm

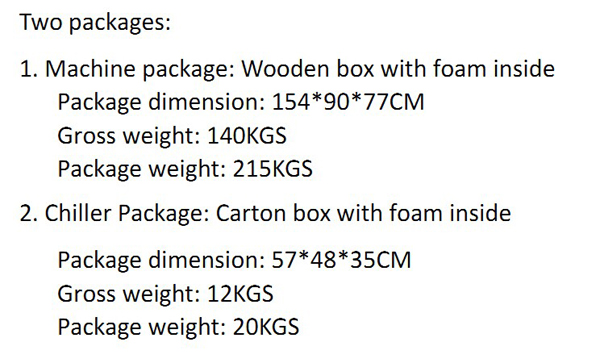

PackingWooden box with foam inside
Package      Dimension157*94*78 cm
Package      Weight230 kg  (Counted by      volumetric weight )


laser head

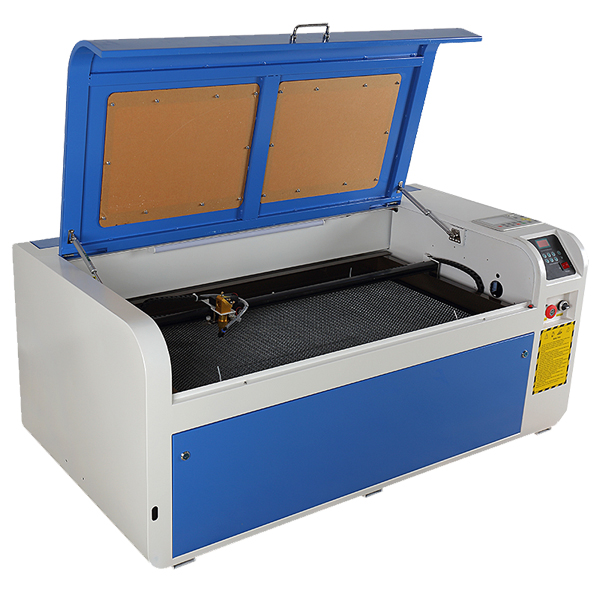

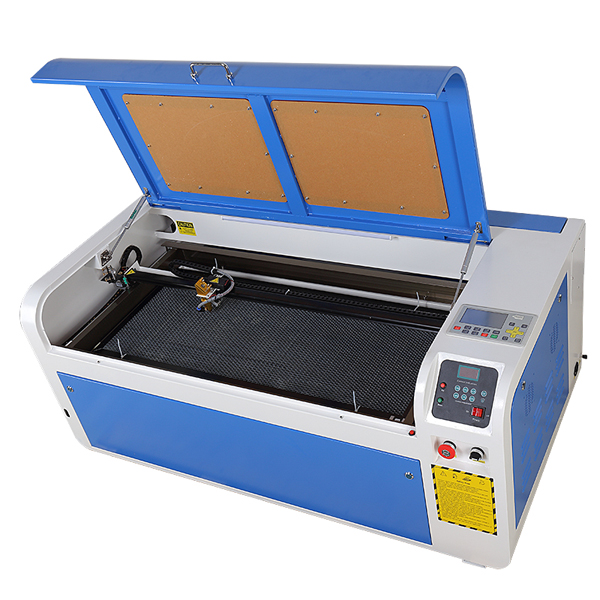

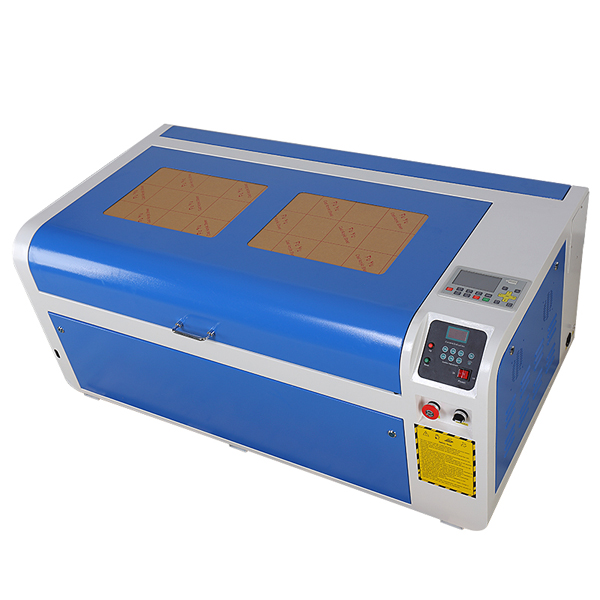

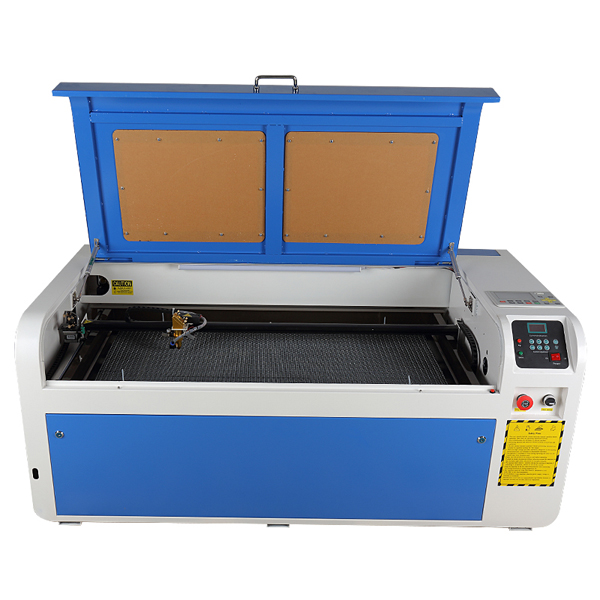

This SL-1040 100W Desktop CO2 Laser Engraving Cutting Machine
can be widely used
-Advertising&Design staff
-Craft Maker
-Woodwork fans
-Model fans
-Leather Tailor’s
-NOT Ready for Nowise(beginner)

CO2 Laser engraving machine can do

CO2 Laser engraving machine sample
