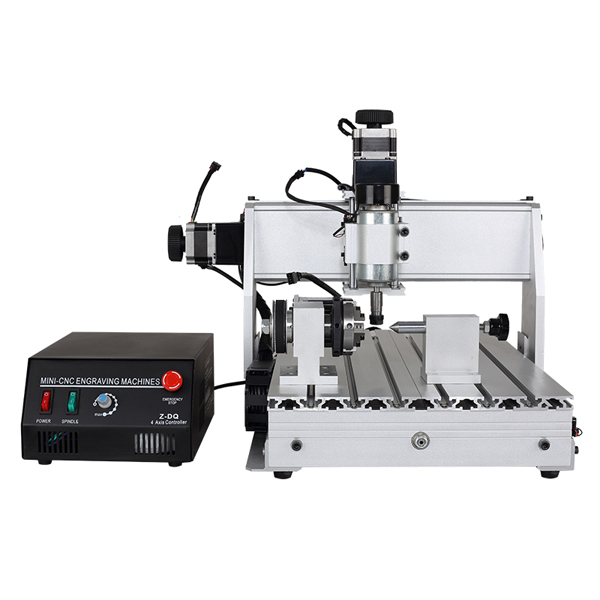

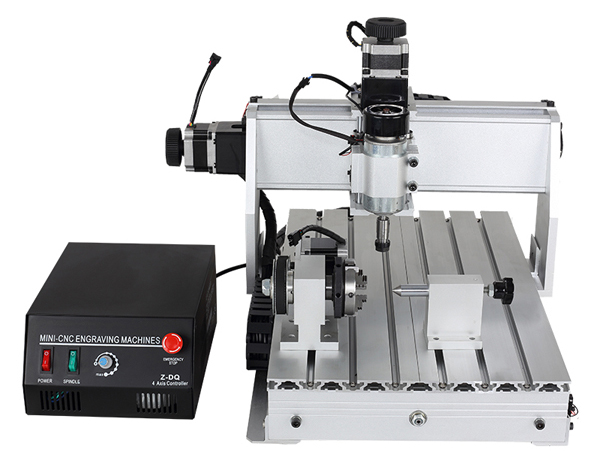

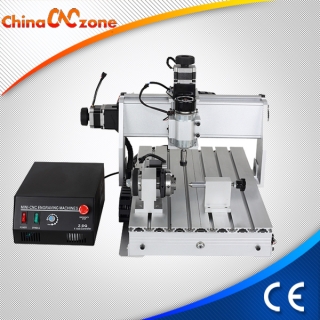

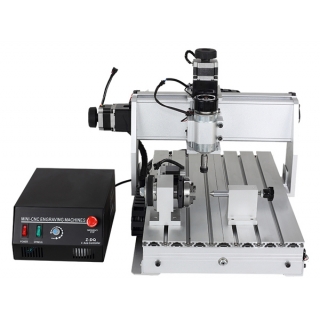

USB CNC 3040 DIY 4 Axis CNC Router Machine Main features
1. Ball Screw high precision
2. 4 axis
3. 230W DC spindle
4. Limited switch added

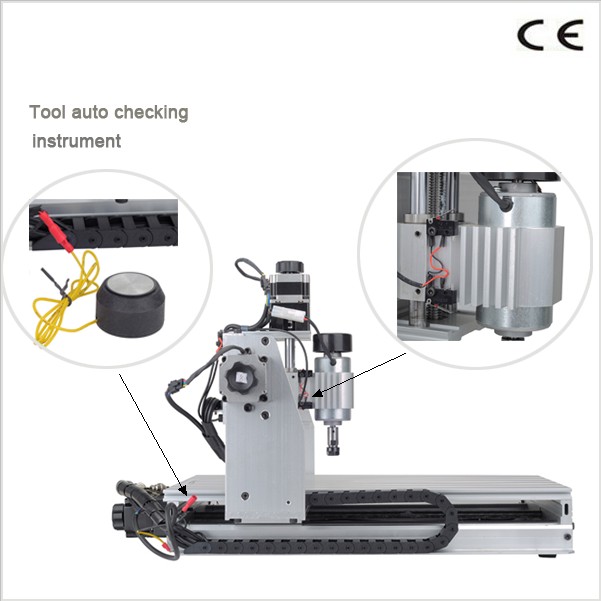

5. Auto checking function added
6. Software: Mach3 and CNC USB software
7. Mini size (300MM*400MM)
8. Can be connected with computer and notebook by USB interface
Technical details for USB CNC 3040 DIY 4 Axis CNC Router Machine
| Effective working travel | 390(X)mm*280(Y)mm*55(Z)mm |
| Shape dimension | 615x485*390mm |
| Max.workpiece dimension | 390mm*280mm<70mm |
| Work table dimension | 530mm*320mm |
| Frame materials | aluminum alloy 6063 and 6061 |
| Driving units X/Y/Z axis | 1204 Ball Screw |
| Sliding units X axis | Dia.16mm chrome plate shafts |
| Sliding units Y axis | Dia.20mm chrome plate shafts |
| Sliding units Z axis | Dia.12mm chrome plate shafts |
| Stepping motor type | 57 two-phase 2.5A |
| Spindle motor | Brand new 230w dc motor 1000~8000PRM/Min |
| Principal axis collet | ER11/3.175 mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat acuities 0.03 mm |
| Control unit | triaxial one-piece drive + ring variable power + PWM speed |
| Carving Instructions | G code/TAB files/nc file/NCC files |
| Software environment | Windows xp |
| Maximum speed | 0-3500mm/min |
| Carving speed | 300-2500mm/min (different materials differ) |
| Operating Voltage | AC110V/AC220V |
| Control unit | Toroidal transformer + PWM power supply module + 4 axis drive board |
| Computer connection | on board palrallel port |
| Command code | G code |
| Acceptable software | Mach3,EMC2 |
| Protection | Emergency stop button |

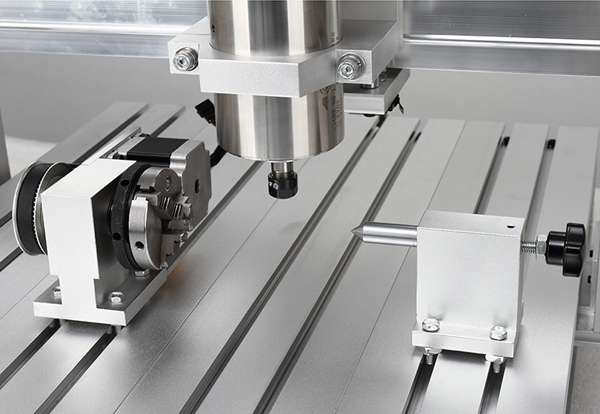

| The 4th axis for CNC 3040 | |
| Size | 136*116*92 mm |
| Centre-Height | 34mm |
| Clamping diameter | 50mm Fingertight fitting |
| Reduction tatio | 1:03 |
| Error Range | 0.1 |
This USB CNC 3040 DIY 4 Axis CNC Router Machine is mini size ,
it is ideal for engraving wood, PVC, acrylic , plastic and so on.
Note: 3.175mm/ 6mm spiral flute router bits suggested.
Packing list for this USB CNC 3040 DIY 4 Axis CNC Router machine
1pc engraving machine(4 Axis cnc router)
1pc controller box
1pc parallel cable
1pc power cable
5pc engraving bit
1 set of clamp tool
1 pc usb cable
Packing: 1 carton box (27KG)
Packing size: 63*51*42CM
