New Model SL-460 50W CO2 Laser Cutter Engraver Machine for Glass, Arylic,Wood,Leather,Plastic

Model SL-460 50W CO2 Laser Cutter Engraver Machine for Glass, Arylic,Wood,Leather,Plastic buy CO2 Laser Engraver,desktop laser engraver from factory ChinaCNCzone

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
sales02atscotlecom

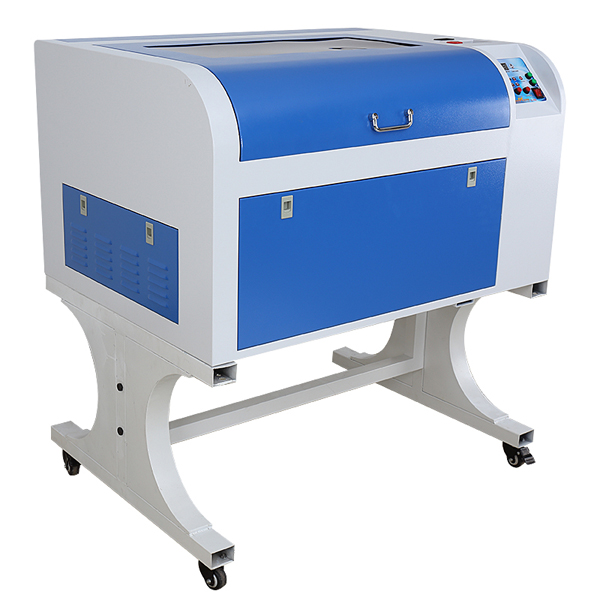

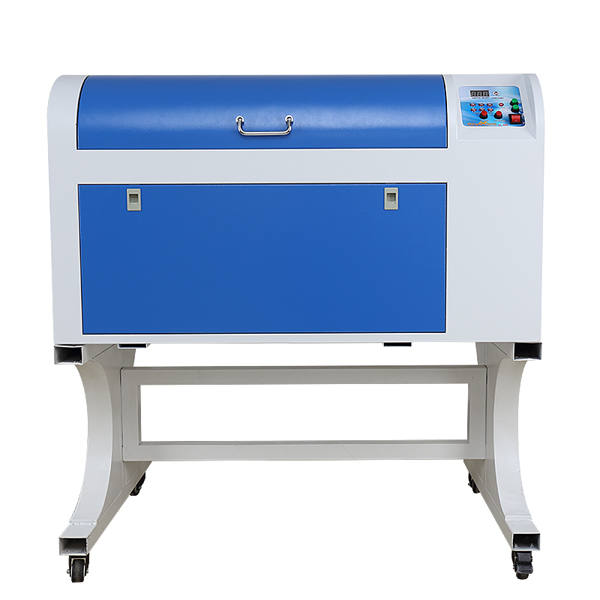

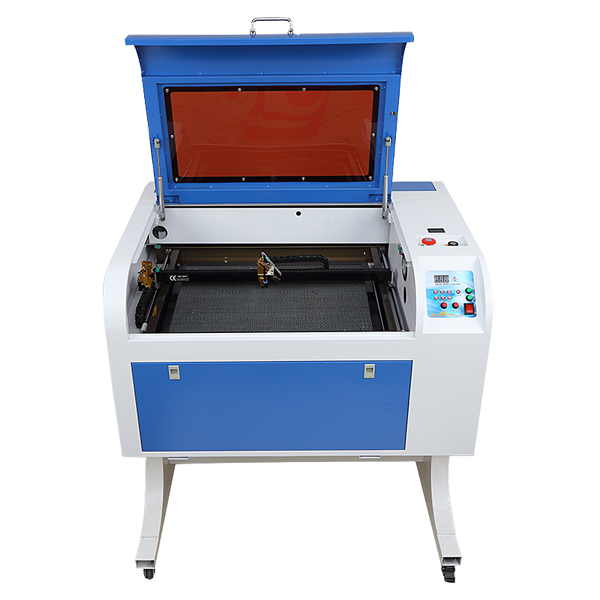

New Model SL-460 50W Laser Cutter Engraver Machine for Glass, Arylic,Wood,Leather,Plastic it is our latest model of CO2 laser engraving machine.
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
   18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier install, Safer transport.
   40W  exhaust fan, flow can be  5.27m³\Min.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
   15W Water Pump, flow can be  7.5L/H.
9. Laser position.

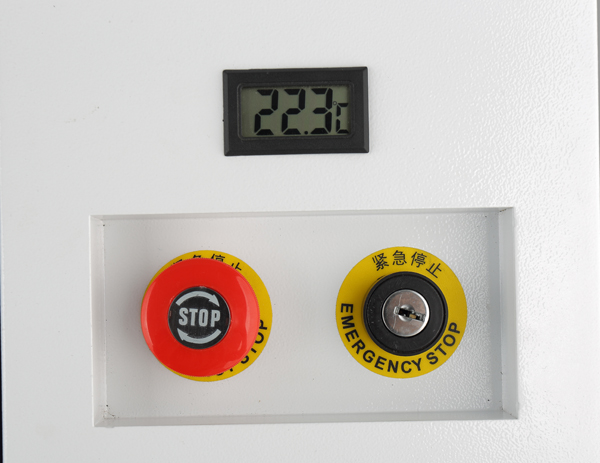

10. Emergency Stop Button.
11. Larger Size, 400*600mm working area.
12. Lifting platform is electric control.
13. Drag - and - chain transmission line
14. Laser focal length: 5CM
15. A limit swith let it can only work when the cover is closed.
16. Machine service life: 1000-1500H for laser tube, 3-5 years for machine body.
17. With stand support
18. With temperature LCD to display the water temperature.
19. This 50W Laser Cutter Engraver Machine is with water cool system.


CO2 Laser engraving machine factory

CO2 Laser engraving machine checking




ChinaCNCzone Culture

ChinaCNCzone Team

CO2 Laser engraving machine checking

ChinaCNCzone Certificate

SL-460 50W CO2  Laser Cutter Engraver Machine Parameters
     Total power<300W
Laser power50W

Laser type50W Laser Cutter Engraver Machine
Power      supplyAC 220V/110V
Working      area400*1000 mm
Engraving      depth0-10 mm (different material      differ)
Cutting      depth0-10 mm
Engraving      speed0-600mm/s
Cutting      speed0-600mm/s
Lifting      platform0-250 mm  Honeycomb      Worktable
Locating      precision<0.01 mm
Min shaping      characterCharacter: 2*2mm, Letter:      1*1mm
Working      temperature5℃-45℃
Working      humidity5%-95%
Resolution      ratio≤1000dpi
Data      transfer interfaceUSB 2.0 (offline)
System      environmentWindows XP / Win 7 / Win 8
Cooling Water Cooling and protection      system with chiller
Graphic      Format SupportedThe Files which CorelDraw      & WinsealXP can identify
(BMP,JPEG,PLT,CDR,AI,)      TIFF,PCX,DIB,TIF
Compatible      softwareCorelDraw,WinsealXP
Color      separationNO
Sloping      engravingNO
ProtectionEmergency stop buttom and Stop      working when water broken
Machine      Dimensions140*75*58 cm
PackingWooden box with foam inside
Package      Dimension157*94*78 cm
Package      Weight230 kg  (Counted by      volumetric weight )


laser head

This New Model SL-460 50W CO2 Laser Cutter Engraver Machine for Glass, Arylic,Wood,Leather,Plastic can be widely used
-Advertising&Design staff
-Craft Maker
-Woodwork fans
-Model fans
-Leather Tailor’s
-NOT Ready for Nowise(beginner)

CO2 Laser engraving machine can do

CO2 Laser engraving machine sample
