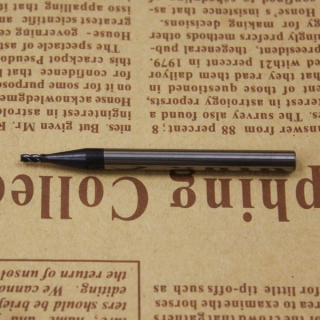

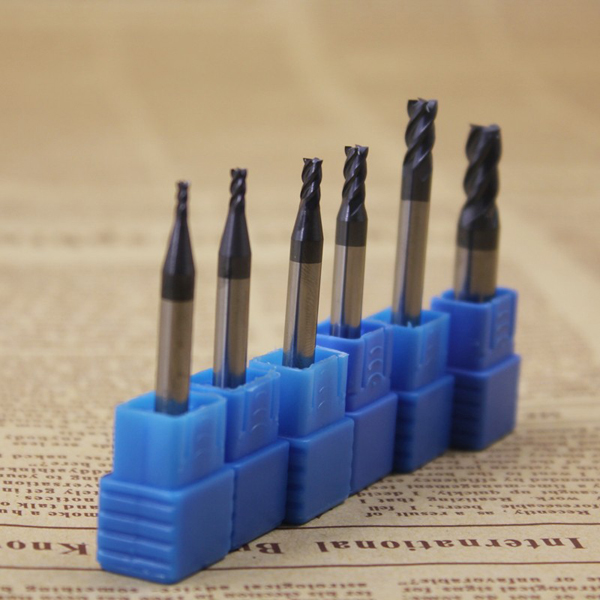

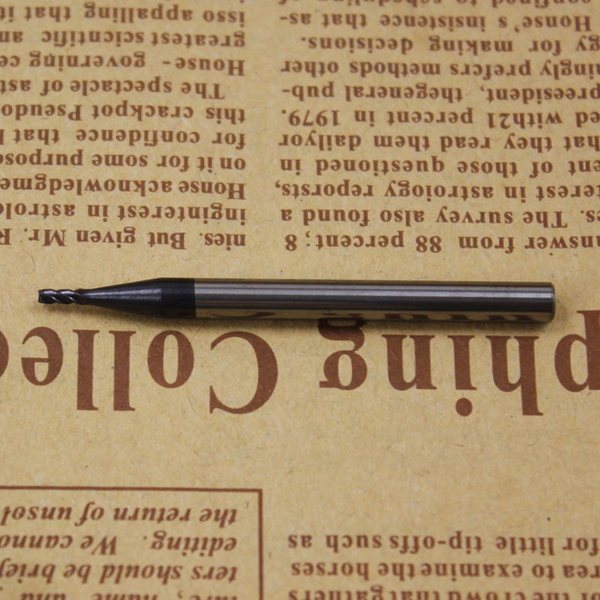

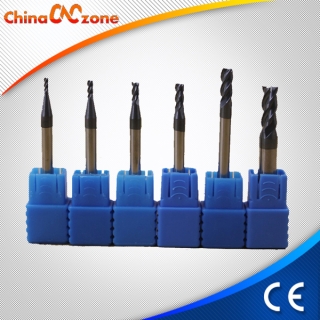

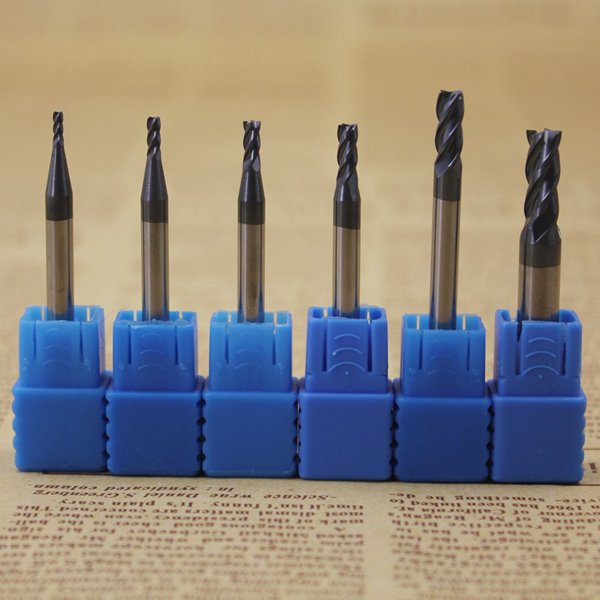

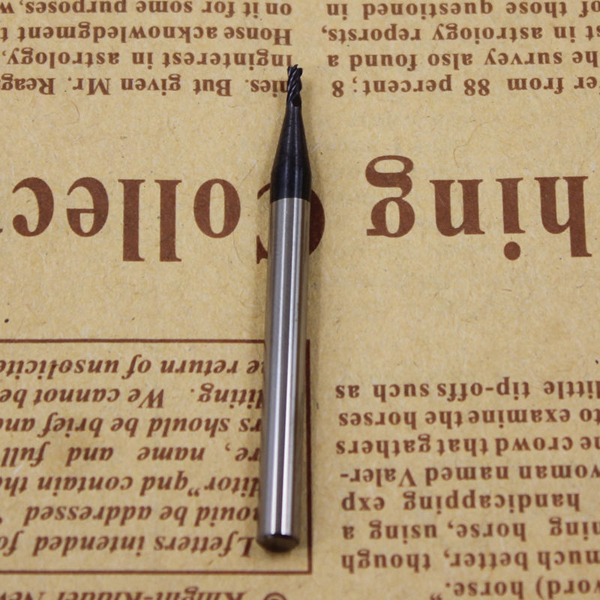

Buy High Speed Solid Carbide End Mills with Angle--ChinaCNCzone
we have 1, 2, 4, 6 flutes for your selection.
These Solid Carbide End Mills can be compatible with our CNC 6040, CNC 3040, CNC 3020, 5 Axis CNC router machine.
These Spiral CNC router bits can engrave a wide gange of materials as below
Copper, Aluminum
ABS, Acrylic, PVC, Nylon, Resin
Majority of plastics Wood
Fibre glass
Carbon
Made material: Solid carbide (Wolfram Steel)
Shank Dia (MM) | Cutting Edge Dia(MM) | Cutting Edge Length(MM) | Cutter Length(MM) |
| 3.175 | 0.6 | 3 | 38 |
| 3.175 | 0.7 | 4 | 38 |
| 3.175 | 0.8 | 5.5 | 38 |
| 3.175 | 0.9 | 6 | 38 |
| 3.175 | 1 | 7 | 38 |
| 3.175 | 1.1 | 7 | 38 |
| 3.175 | 1.2 | 7 | 38 |
| 3.175 | 1.3 | 7.5 | 38 |
| 3.175 | 1.4 | 7.5 | 38 |
| 3.175 | 1.5 | 8.5 | 38 |
| 3.175 | 1.6 | 8.5 | 38 |
| 3.175 | 1.7 | 9.5 | 38 |
| 3.175 | 1.8 | 9.5 | 38 |
| 3.175 | 1.9 | 9.5 | 38 |
| 3.175 | 2 | 9.5 | 38 |
| 3.175 | 2.1 | 10.5 | 38 |
| 3.175 | 2.2 | 10.5 | 38 |
| 3.175 | 2.3 | 10.5 | 38 |
| 3.175 | 2.4 | 10.5 | 38 |
| 3.175 | 2.5 | 10.5 | 38 |
| 3.175 | 2.6 | 12 | 38 |
| 3.175 | 2.7 | 12 | 38 |
| 3.175 | 2.8 | 12 | 38 |
| 3.175 | 2.9 | 12 | 38 |
| 3.175 | 3 | 12 | 38 |
| 3.175 | 3.175 | 12 | 38 |
Note: 3.175 Shank dia spiral router Bits is widely used and compatible with 3040 CNC, 6040 CNC series.
Our high speed solid carbide end mill scan engrave Copper, Aluminum, ABS, Acrylic, PVC, Nylon, Resin ,Majority of plastics, Wood, Fibre glass, Carbon

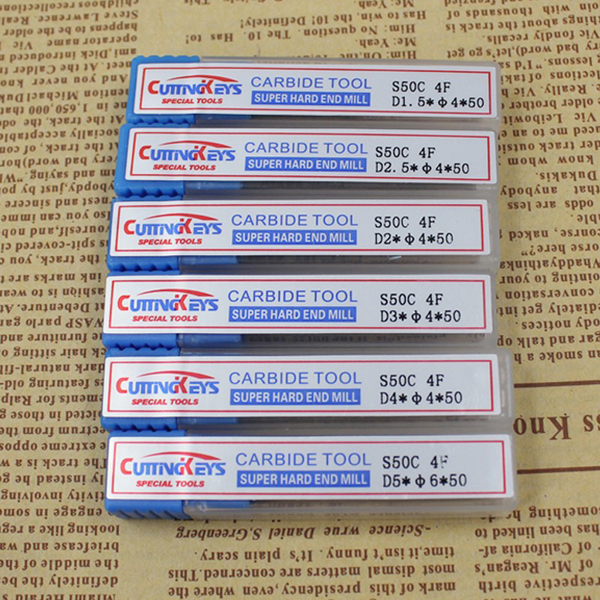

Plastic box
Inquire
