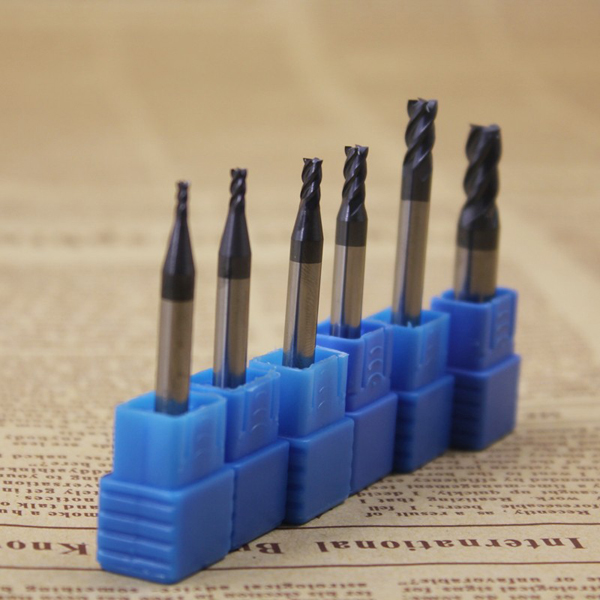

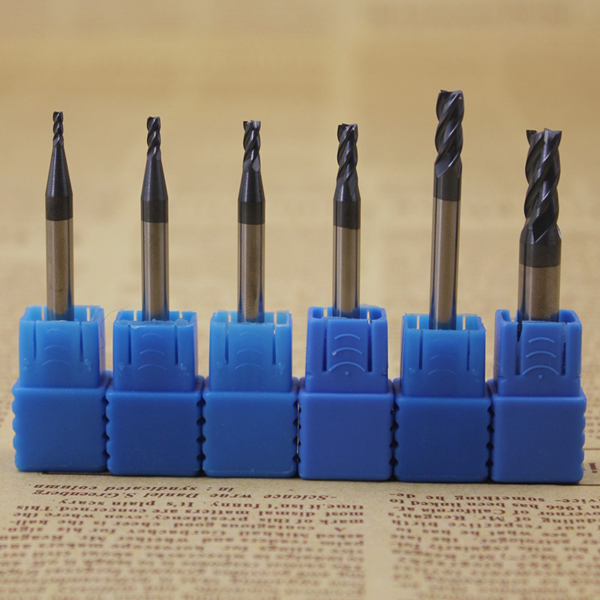

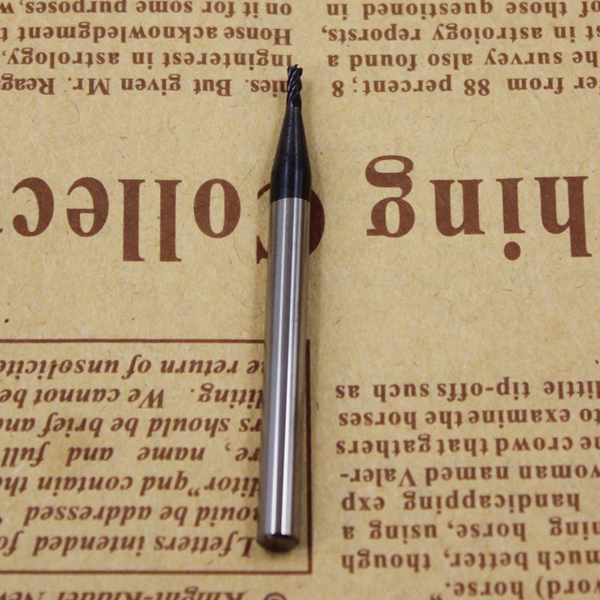

Buy Spiral CNC Router Bits from ChinaCNCzone
we have 1, 2, 4, 6 flutes for your selection.
These Spiral CNC router bits can be compatible with our CNC 6040, CNC 3040, CNC 3020, 5 Axis CNC router machine.
These Spiral CNC router bits can engrave a wide range of materials as below
Copper, Aluminum
ABS, Acrylic, PVC, Nylon, Resin
Majority of plastics Wood
Fibre glass
Carbon

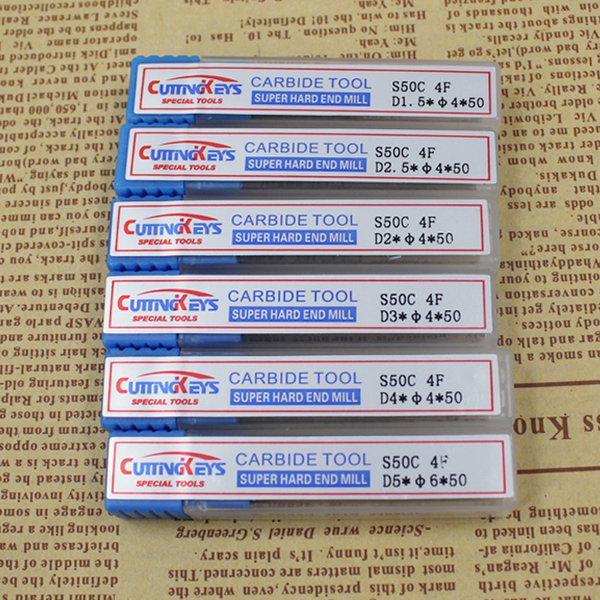

Made material: Solid carbide (Wolfram Steel)
Shank Dia (MM) | Cutting Edge Dia(MM) | Cutting Edge Length(MM) | Cutter Length(MM) |
| 3.175 | 0.6 | 3 | 38 |
| 3.175 | 0.7 | 4 | 38 |
| 3.175 | 0.8 | 5.5 | 38 |
| 3.175 | 0.9 | 6 | 38 |
| 3.175 | 1 | 7 | 38 |
| 3.175 | 1.1 | 7 | 38 |
| 3.175 | 1.2 | 7 | 38 |
| 3.175 | 1.3 | 7.5 | 38 |
| 3.175 | 1.4 | 7.5 | 38 |
| 3.175 | 1.5 | 8.5 | 38 |
| 3.175 | 1.6 | 8.5 | 38 |
| 3.175 | 1.7 | 9.5 | 38 |
| 3.175 | 1.8 | 9.5 | 38 |
| 3.175 | 1.9 | 9.5 | 38 |
| 3.175 | 2 | 9.5 | 38 |
| 3.175 | 2.1 | 10.5 | 38 |
| 3.175 | 2.2 | 10.5 | 38 |
| 3.175 | 2.3 | 10.5 | 38 |
| 3.175 | 2.4 | 10.5 | 38 |
| 3.175 | 2.5 | 10.5 | 38 |
| 3.175 | 2.6 | 12 | 38 |
| 3.175 | 2.7 | 12 | 38 |
| 3.175 | 2.8 | 12 | 38 |
| 3.175 | 2.9 | 12 | 38 |
| 3.175 | 3 | 12 | 38 |
| 3.175 | 3.175 | 12 | 38 |
Note: 3.175 Shank dia spiral router Bits is widely used and compatible with 3040 CNC, 6040 CNC series.
Our spiral router bits can engrave Copper, Aluminum, ABS, Acrylic, PVC, Nylon, Resin ,Majority of plastics Wood, Fibre glass, Carbon

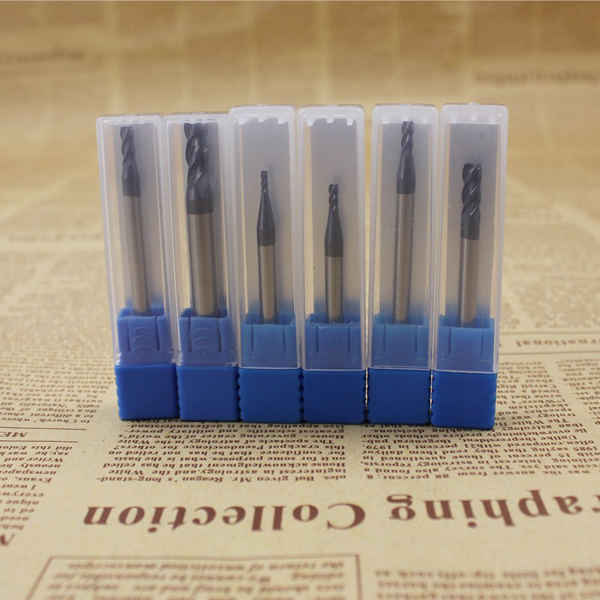

Plastic box
