CNC 6040Z New 2200W Spindle Mini Benchtop CNC Router Machine for Engraving, Milling, Drilling

Professional Manufacturer for CNC 6040Z New 2200W Spindle Mini Benchtop CNC Router Machine for Engraving, Milling, Drilling with competitive price.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
Sunny-scotle

CNC 6040Z New 2200W Spindle Mini Benchtop CNC Router Machine for Engraving, Milling, Drilling

1. USB Interface easy to be connected with notebook and computer.

2. 2200W water cooled spindle

3. 110V/220V available

4.  3 Axis and 4 Axis for your selection

5. Ball screw high precision

6. Spindle diameter 65mm

7. Mach3 cnc software

8. With limit switch, protect the machine efficiently

9. With auto checking function

10. Good design with Steady and strong equiped with aluminum alloy frame materials.

11.spindle motor knob can realize small positioning adjustment.

12. Thick machine body makes safe shipping and working

13. Chrome shafts prolongs using life

14. Large 3D engraving in soft wood, MDF board, native wood, PVC, Acrylic, aluminum, brass, non ferrous metal and so on.

15. Flexible coupling can be used for high torque transmission.


16. Now we have mach3 usb controller version, you can use mach3 by USB interface

More detailes: please kindly refer to:

https://www.chinacnczone.com/en/which-you-likemach-3-usb-controller-or-usb-cnc-controller_l289_p155.html

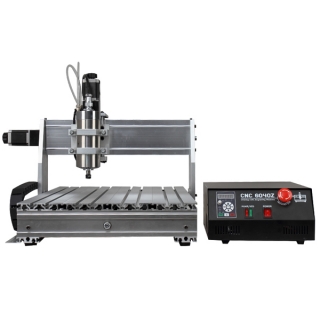

6040 CNC Router
6040 cnc
6040 cnc router 3 axis


USB CNC To 25 Pins transfer cable


Ball Screw


ChinaCNCzone team always welcome customers from all over the world to visit our factory, and

let us provide the best diffirent models mini CNC routers  and desktop cnc routers for users together.



ChinaCNCzone Team


ChinaCNCzone Mini CNC Router




 ChinaCNCzone Certificate







Technical details CNC 6040Z New 2200W Spindle Mini Benchtop CNC Router Machine for Engraving, Milling, Drilling

Effective   working travel580(X)mm*400(Y)mm*75(Z)mm
Shape   dimension880*670*530mm
Max.workpiece   dimension580mm*400mm<90mm
Work   table dimension750mm*480mm
Frame materialsaluminum   alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let    counterfeiters dwarfs
acceptable   material thickness≤100mm
Driving unitsX/Y/Z   axis1605   ballscrew
Sliding unitsX axisDia.16mm   chrome plate shafts
Y axisDia.20mm   chrome plate shafts
Z axisDia.13mm   chrome plate shafts
Stepping   motor type 57   two-phase 3A 150NNaN
Spindle   motorBrand   new 800W/1500W water cooling spindle, 24000RPM
Principal   axis colletER11/3.175   mm/6mm
Repeat   accuracy0.05mm
Spindle   precisionradial   beat acuities 0.03 mm
Carving   InstructionsG   code/TAB files/nc file/NCC files
Communication   interfacethrough   parallel connection with computer
Software   environmentWindows   xp, Windows 7
Maximum   speed0-4000mm/min
Carving   speed0-2500mm/min   (different materials differ)
Control unitToroidal   transformer + PWM power supply module + TB6560 3axis drive board
Computer   connectionon   board palrallel port/ USB interface
Command   codeG   code
Acceptable   softwareMach3/  CNC USB software
ProtectionEmergency   stop button
Operating   VoltageAC110V/AC220V
Water   cooled spindle2200W

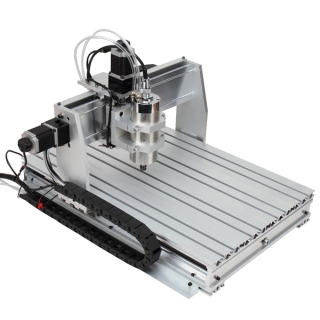

3 Axis benchtop cnc router



CNC 6040Z New 2200W Spindle Mini Benchtop CNC Router Machine for Engraving, Milling, Drilling can engrave diffirent materials such as  acrylic, aluminum, brass, wood, PVC, PCB, Resin and so on

Packing list CNC 6040Z New 2200W Spindle Mini Benchtop CNC Router Machine for Engraving, Milling, Drilling

1pc CNC 6040z

1pc 2200W spindle

1pc parallel cable

1pc power cable

6pc engraving bit

1set of clamp tool

1pc USB cable

PS: Provide machine manual and mach3 software for free

Packing:  2 carton boxes (55KG)

Packing size:  60*52*43cm(top) and 80*22*63cm(bot)
