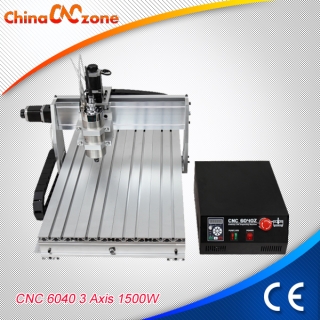

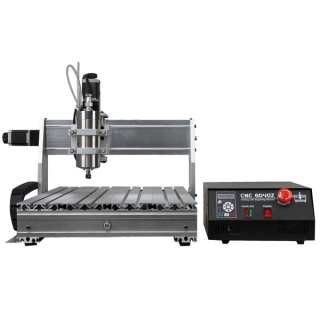

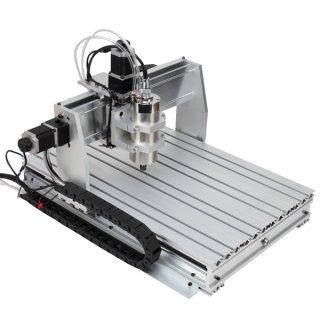

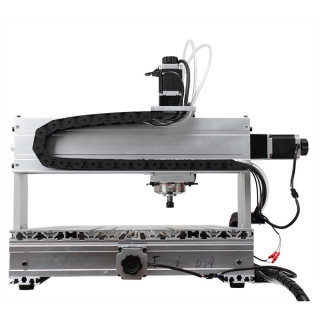

Hobby CNC Router 6040 3 Axis from China CNC Factory (1500W Spindle)

Buy Hobby CNC Router, CNC Router 6040, 6040 Router, China CNC from ChinaCNCzone. We can not just supply high quality Hobby CNC Router 6040 3 Axis, but more can save your time, your money, your trouble and provide solutions.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
Sunny-scotle

Outstanding features for this Hobby CNC Router 6040 3 Axis from China CNC Factory

1. USB Interface easy to be connected with notebook and computer.

2. 1500W water cooled spindle

3. 110V/220V available

4. 3 Axis and can be upgraded to 4 Axis cnc router when needed

5. Ball screw high precision

6. Spindle diameter 65mm

7. Mach 3 cnc software

8. With limit switch, protect the machine efficiently

9. With auto checking function

10. Good design with Steady and strong equiped with aluminum alloy frame materials.

11.spindle motor knob can realize small positioning adjustment.

12. Thick machine body makes safe shipping and working

13. Chrome shafts prolongs using life

14. Large 3D engraving in soft wood, MDF board, native wood, PVC, Acrylic, aluminum, brass, non ferrous metal and so on.

15. Flexible coupling can be used for high torque transmission.






Technical detailed for Hobby CNC Router 6040 3 Axis from China CNC Factory (1500W Spindle)

Effective working travel580(X)mm*400(Y)mm*75(Z)mm
Shape dimension880*670*530mm
Max.workpiece dimension750mm*450mm<90mm
Work table dimension750mm*480mm
Frame materialsaluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
acceptable material thickness≤100mm
Driving unitsX axis1605 ballscrew

Y axis

1605 ballscrew
Z axis1605 ballscrew
Sliding units

X axis

Dia.16mm chrome plate shafts

Y axis

Dia.20mm chrome plate shafts
Z axisDia.13mm chrome plate shafts
Stepping motor type 57 two-phase 3A 150N.cm
Spindle motorbrand new 1.5KW water cooling spindle, 24000RPM
Principal axis colletER11/3.175 mm/6mm
Repeat accuracy0.05mm
Spindle precisionradial beat acuities 0.03 mm
Control unittriaxial one-piece drive + ring variable power + PWM speed
Carving InstructionsG code/TAB files/nc file/NCC files
Communication interfacethrough parallel connection with computer
Software environmentWindows xp
Maximum speed0-4000mm/min
Carving speed0-2500mm/min (different materials differ)
Control unitToroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connectionon board palrallel port
Command codeG code
Acceptable softwareMach3,EMC2
ProtectionEmergency stop button
Operating VoltageAC110V/AC220V
Machine weight53KG


This Hobby CNC Router 6040 3 Axis from China CNC Factory (1500W Spindle) can be widely used in diffirent areas and can engrave diffirent materials:



Note:

3.175mm/ 6mm spiral flute router bits suggested.




Packing list for this Hobby CNC Router 6040 3 Axis

1pc Hobby CNC Router 6040 3 Axis machine body

1pc 1500W spindle

1pc parallel cable

1pc power cable

6pc engraving bit

1set of clamp tool

1pc USB cable

PS: Provide machine manual and mach3 software for free


Packing:  2 carton boxes (55KG)

Packing size:  60*52*43cm(top) and 80*22*63cm(bot)
