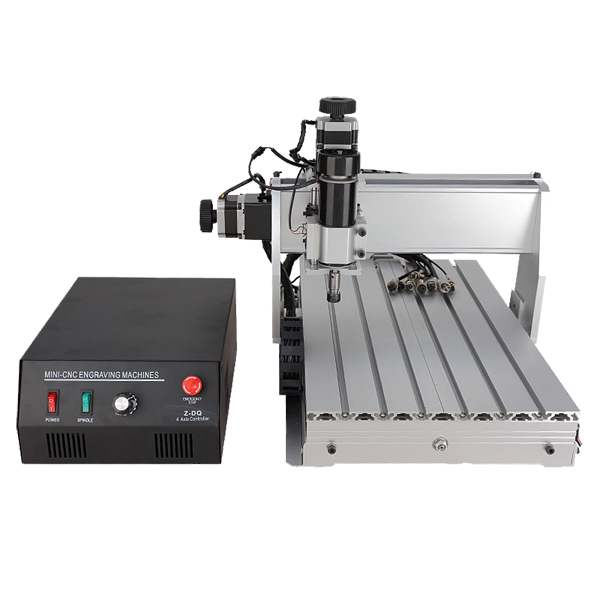

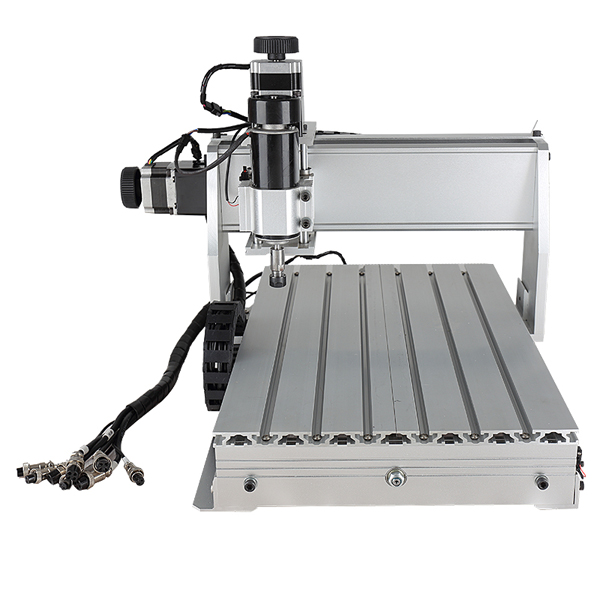

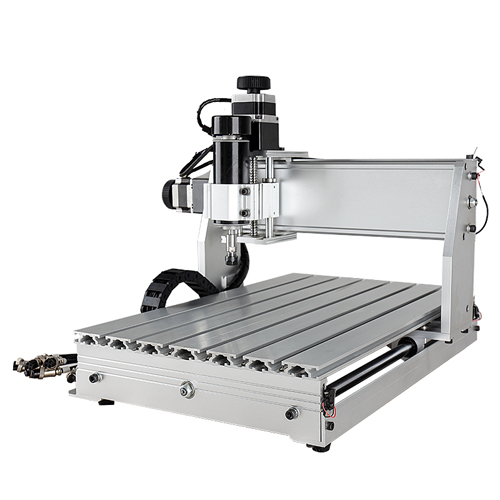

New 500W Spindle 3040 Router Desktop Mini CNC Machine with USB Interface
1. BAll Screw,high precision
2. Can be updated into CNC 3040 4 Axis Router easily.
3.500W DC spindle for selection.
4. Limited switch added.
5. Auto-Checking function, easy to set origin of Z axis
6. Technical support always available, video supported.
7. Software: compatible with Mach3 or USB CNC software.
8. CE approved
9. Can be connected with computer by parallel port and notebook by USB interface
10. English manual available.
11. Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
12. From reliable & trustable profesional mini CNC router manufacturer.
13. Original Mach3 software can be provided.
ChinaCNCzone team always welcome customers from all over the world to visit our factory, and
let us provide the best diffirent models mini CNC routers for users together.
| 500W Spindle 3040 Router Desktop Mini CNC Machine Parameters | |
| Effective working travel | 370(X)mm*280(Y)mm*55(Z)mm |
| Shape dimension | 625*510*410mm |
| Table size | 520*320 |
| Frame materials | aluminum alloy 6063 and 6061 |
| Driving units X/Y/Z axis | 1204 Ball Screw |
| Sliding units X axis | Dia.16mm chrome plate shafts |
| Sliding units Y axis | Dia.20mm chrome plate shafts |
| Sliding units Z axis | Dia.13mm chrome plate shafts |
| Stepping motor type | 57 two-phase 2.5A |
| Spindle motor | Brand new 230w dc motor 1000~8000PRM/Min |
| Principal axis collet | ER11/3.175 mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat accyracy is 0.03 mm |
| Carving Instructions | G code, or any MACH3 support format file |
| Software environment | Windows xp/ Windows 7 |
| Maximum speed | 0-3500mm/min |
| Carving speed | 300-2500mm/min (different materials different) |
| Computer connection | On board parallel port and USB port |
| Acceptable software | Mach3, USB CNC, EMC2 |
| Protection | Emergency stop button |
| Operating Voltage | AC220V/110V |
This 500W Spindle 3040 Router Desktop Mini CNC Machine can be widely used to engrave
wood, acrylic, brass, alumimun,PVC, PCB and so on.
Packing list for this New 500W Spindle 3040 Router Desktop Mini CNC Machine with USB Interface.
1pc 3040 CNC machine main body
1pc controller box
1pc parallel cable
1pc power cable
5pc engraving bit
1 set of clamp tool
1 pc usb cable
Packing: 1 carton box (27KG)
Packing size: 63*51*42CM
