As we know,ChinaCNCzone has the USB CNC controller version for CNC 3040, CNC 6040 and CNC 6090.
And when you decide to buy a mini CNC router with USB CNC controller, you may interested in below information:
What is a USB CNC controller?

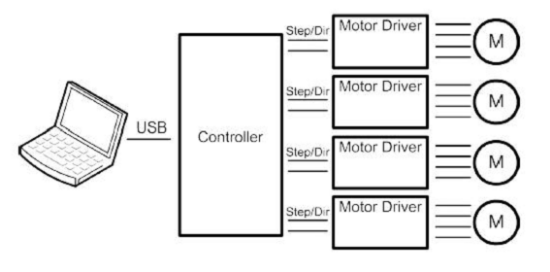

CNC motion controller is a device connect computer with motor driver. It can work with your laptop or desktop which have USB port connection.
ChinaCNCzone Computer System Requirements
Bottommost (lowest) configuration:
1 GHz or faster CPU processor
512MB of memory
500 MB of free disk space
DirectX 9 graphics device with WDDM 1.0 or higher driver
USB 2.0 port
NET Framework 3.5 SP1
ChinaCNCzone Recommend configuration:
2 GHz or faster CPU
2GB RAM
500 MB free disk space
DirectX 9 graphics device with WDDM 1.0 or higher driver
USB 2.0 port
NET Framework 3.5 SP1
Hardware
How to connect the USB CNC controller?
The specification & functions
Run Windows XP, Windows 7, Windows 8, Windows 10 with USB 2.0
Andvanced Interpolation algorithm
High-performance IO buffer
Provide, Start, Stop, Pause, Continue
Support standard RS274/NGC G-code (EMC2 compatible)
Support anvanced G-codes - G40, G41, G42 (tool radius compensation)
Support anvanced G-codes - G43, G49 (Tool length encoding)
Support anvanced G-codes - G54, G59.3 (coordinate system)
support SolidCAM, MasterCAM, ArtCAM, Vectric, ... creat G code
support 3-axis, 4-axis.
Load DXF file
Load directly PLT/HPGL file
Load directly picture file
Load directly drill file
Load directly GERBER file
Advanced tool change function
export G-code
export DXF
export CSV
export NC

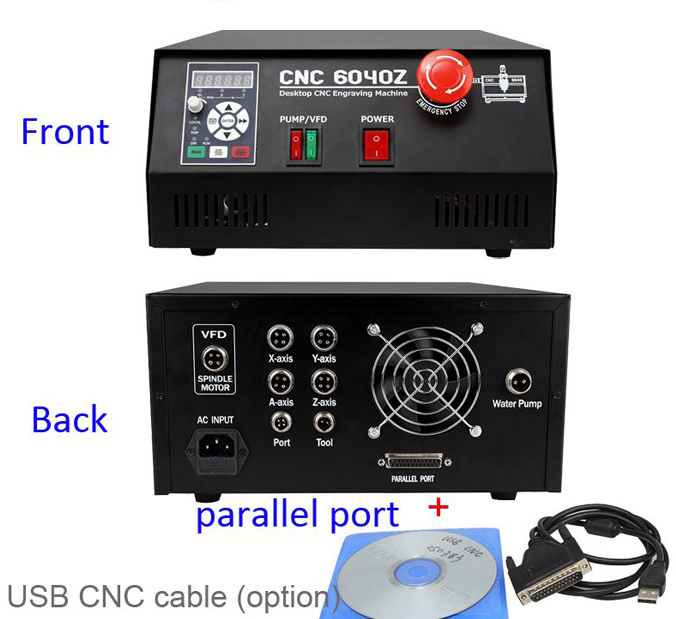

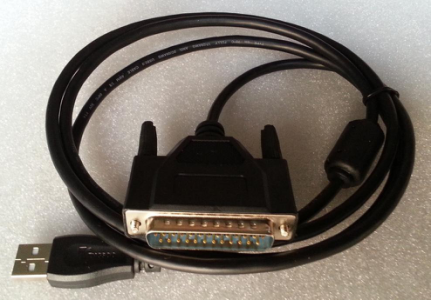

One port of USB card connect controller box by parallel port;
Another port connect computer USB port.

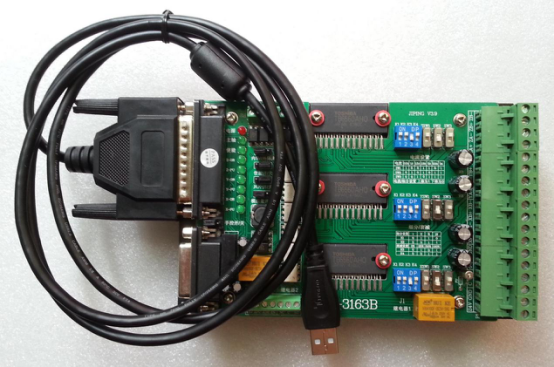

The Four-axis controller card instruction of ChinaCNCzone
Support 4th axis CNC machine
Can switch 3 modes: Normal XYZ, thermal cutting XYUV, rotating XYZA,
Provided for each axis 25 kHZ pulse signal
12 us minimum pulse width
All axis limit
Can be accessed by external port, such as hand remote controller;
3 digital outputs (spindle / cutting liquid / mist)
